Rovinj — Croatia
Overview

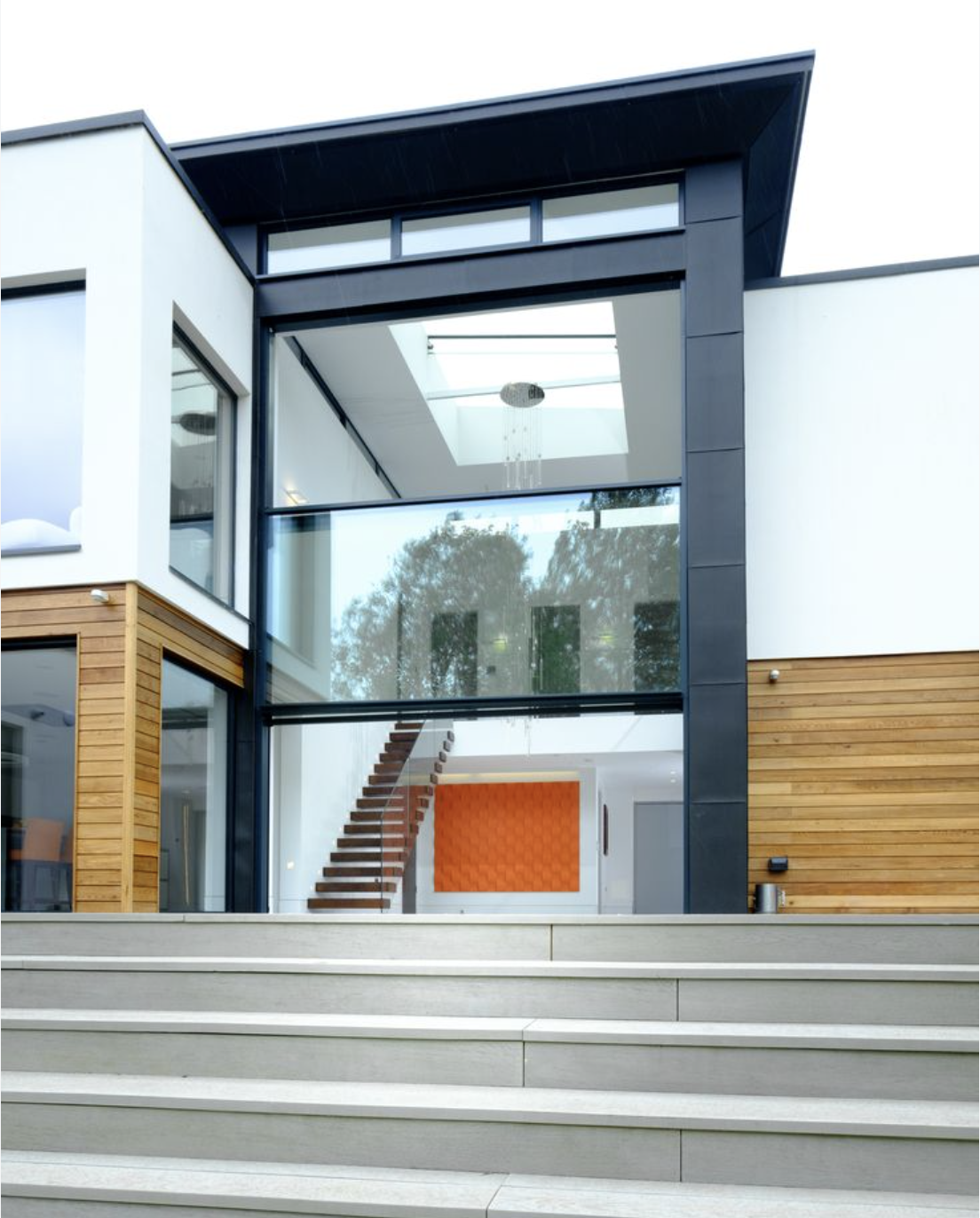

Expansive floor-to-ceiling openings that glide effortlessly upwards
Vitrocsa's Guillotine system is a vertical sliding window solution that enables expansive floor-to-ceiling openings which glide open effortlessly upwards or downwards. Named for its vertical movement with double or triple glazing, the Guillotine system comprises large glass panels that slide past each other (or a counterweight) to open the entire height.
Key Features
Engineered details that define the system
01
Vertically Panoramic
The Guillotine design opens up multi-storey views and admits light from top to bottom. With no intermediate transoms, you get a continuous glass expanse that, when opened, forms a lofty portal to the outdoors.
02
Heavyweight Capability
Each moving panel can weigh on the order of 500 to 1000 kg (depending on range) and still function effortlessly. The system's counterbalance mechanism and optional motorization are engineered for reliability under extreme loads.
03
Multiple Configurations
Flexibility is built-in — you can have both panels move (meeting in the middle when closed), or one fixed and one mobile, or even multiple stacked panels for very tall openings.
04
Safe and Streamlined
Despite the name, safety is paramount: the system includes fail-safes like braking mechanisms and sensors when motorized, preventing sudden drops.
Finishes
A refined palette of finishes
Every Vitrocsa system is available in a range of finishes to suit your architectural intent — from the signature anodised aluminium to bespoke powder coatings and stainless steel.
Anodised Finishes
Standard EV1 anodised aluminium at 25 microns — the signature Vitrocsa finish, with special anodisation available for a bespoke metallic tone.
Powder Coated Finishes
A large choice of RAL colours, from anthracite grey (RAL 7016) to jet black (RAL 9005), applied as a uniform matte powder coat.
Textured Finishes
Matte, fine-textured effect coatings such as “Moon Dust” (IGP-Effectives® 5903U90070F10) — volcanic ash with the subtle glow of meteorites — adding tactile depth and a refined surface character to the profile.
Bespoke Finishes
Bespoke effect colours from the IGP-Effectives® collection paired with IGP-DURA®one 56 — such as “Terra di Sienna” — alongside brushed stainless steel for a truly custom architectural statement.
Guillotine Window Range
Vitrocsa's Guillotine system is offered in multiple ranges to address different technical requirements. The V56 range achieves the largest glass panels and highest weight capacity. The TH+ range delivers thermal insulation for large vertical sliding panels. The 3001 range is the original, ideal for warm climates.
Technical Specifications
Guillotine Comparison Table
Below is a comparative overview of the Guillotine window system's available ranges, highlighting key specifications and capabilities of each.
| Window Type | V56 | TH+ | V32 | 3001 |
|---|---|---|---|---|
| Connection Thickness | 25 mm | 22 mm | 18.5 mm | |
| Glass Thickness | 56 mm | 32 to 44 mm | 12 to 26 mm | |
| Weight | 1000 kg per panel | 500 kg per panel | 180 kg per panel | |
| Motorisation | ||||
| Lock Mechanism | ||||
| Finishes | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. | Standard EV1 anodised 25 microns; Powder coating large choice; Special anodisation large choice. |
Technical Downloads
CAD, BIM & datasheets
Download the Guillotine datasheet directly, or request CAD drawings and Revit BIM objects from our technical team.
In Motion
See the system in action
In Practice
Related Projects
Projects featuring the Vitrocsa Guillotine window system.
FAQ
Guillotine FAQs
Answers to the most common questions about the Vitrocsa Guillotine window system. Can't find what you're looking for? Ask Cortex or contact our team directly.
Next Step
Request a quote for the Guillotine system
Share your project details and our technical team will prepare a detailed quotation within two working days.
Request a QuoteGated Resource
The Specifier's Guide to Minimal Glazing
A comprehensive reference for architects and specifiers working with minimalist window systems. Covers system selection, thermal performance, glazing specification, structural requirements, and installation planning.
System range comparison — V56, TH+, V32 & 3001
Glazing specification: double vs triple, coatings & interlayers
Thermal performance data & U-value guidance
Structural requirements & site preparation checklist
Finish options & material samples guidance
Project planning timeline & specification checklist
Company Brochure
Download the Vitrocsa corporate brochure
A complete overview of our heritage, six window systems, certified performance, and global architectural references.
